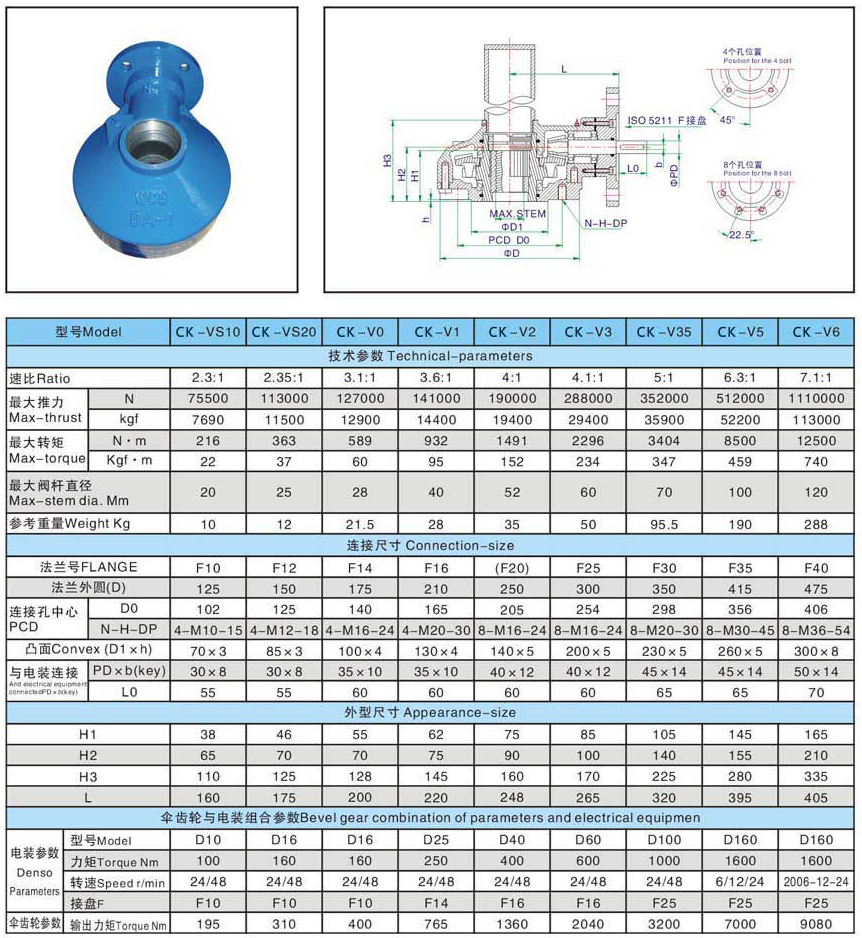

CK-V-D系列CK-V-D Series
多回轉型閥門手動裝置Multi-turn gear actuator
該裝置是直接安裝在閘閥和截止閥等閥門上的手動裝置，該裝置采用弧齒錐齒輪和平面推力承軸，有運轉平穩、扭矩大、噪音小、效率高的優點。在所有的結合部，采用了密封墊全密封處理，達到了防水、防油漏的效果，防護等級為IP65。手輪和閥桿罩可根據用戶霄求定制。結合各類閥門使用要求及環境，還有單級帶電裝連接、雙級帶電裝連接、雙級手輪驅動等產品。
The device is a manual device directly installed on the gate valve and globe valve and other valves. The device adopts spiral bevel gear and flat thrust bearing shaft, which has the advantages of smooth operation, large torque, low noise and high efficiency. In all joints, the sealing gasket is fully sealed to achieve the effect of waterproof and oil leakage, and the protection grade is IP65. Handwheel and stem cover can be customized according to customer's requirements. Combined with all kinds of valve requirements and environment, there are single stage with electric connection, double stage with electric connection, double stage handwheel drive and other products.
